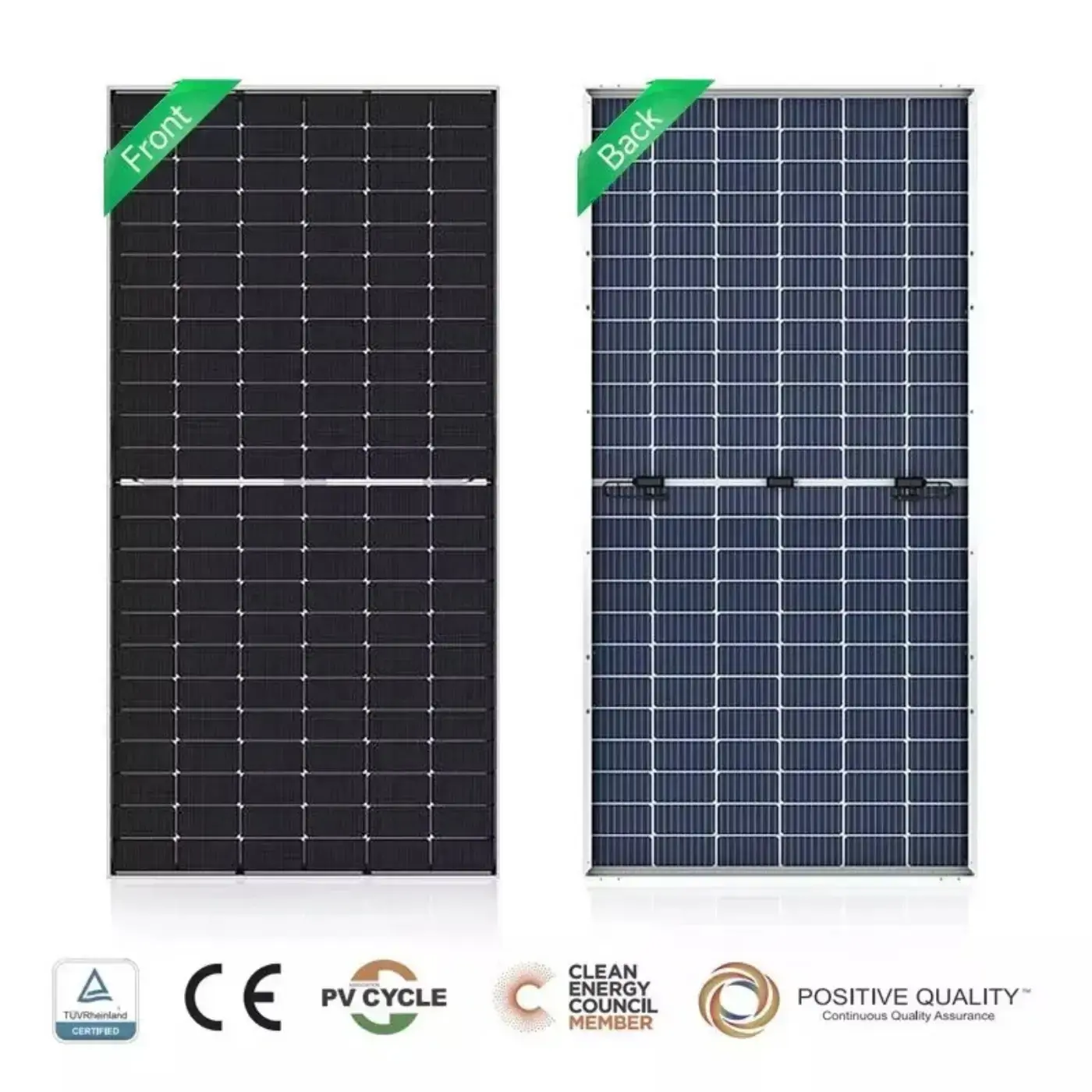

Jinko 620 Watts Bifacial N-Type Solar Panel (Tiger Neo 66HL4M-BDV)
Technical Support
Call: +8801344519212
Delivery Information
- Inside Dhaka: TK (2-3 Business Days)
- Outside Dhaka: TK (3-5 Business Days)
Note: For overweight products, shipping charges are based on Pathao, Steadfast, or Redx rates. View Shipping Information
- High Efficiency Output
- Bifacial Dual Glass Technology
- Strong Mechanical Load Capacity
- Advanced Reliability Features
- 30 Years Linear Power Warranty
Technical Specifications – Jinko 620W N-Type Bifacial Solar Panel
Electrical Characteristics (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 620 W |
| Maximum Power Voltage (Vmp) | 40.74 V |
| Maximum Power Current (Imp) | 15.22 A |
| Open Circuit Voltage (Voc) | 49.08 V |
| Short Circuit Current (Isc) | 16.08 A |
| Module Efficiency | 22.95% |
Temperature & Performance
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | 0.04% / °C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | N-type monocrystalline |
| Number of Cells | 132 (2 × 66) |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.4 kg |
| Front Glass | 2.0 mm, Anti-Reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
System & Ratings
| Parameter | Value |
|---|---|
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 35 A |
| Power Tolerance | 0 ~ +3% |
| Bifacial Factor | 80 ± 5% |
Warranty Information
| Parameter | Value |
|---|---|
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years |
| Annual Degradation | 0.40% |
